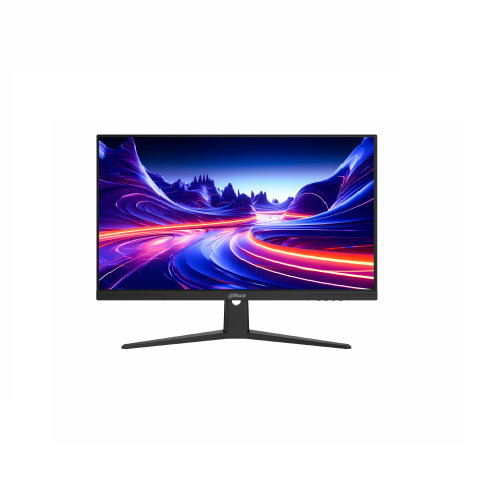

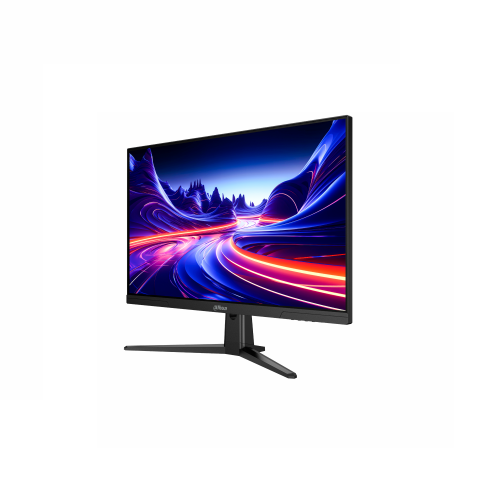

DAHUA LM25-E231BN 24.5″ 200HZ FHD IPS 1MS

Display

Model

DHI-LM25-E231BN

LCD Technology

IPS

Backlight

ELED

Screen Size

24.5 inch

Aspect Ratio

16:9

Viewing Size

543.744 (H) × 302.616 (V) mm

Screen-to-Body Ratio

≥85%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.0944 mm × 0.2802 mm

Pixels Per Inch

89.91

Resolution

1920 (H) × 1080 (V)

Refresh Rate

200 Hz

Display Color

8 bit, 16.7M colors

Color Gamut

85% NTSC

Brightness

350 cd/m² (typ.)

Contrast Ratio

1000: 1

Response Time

MPRT 1 ms, OD 0.5 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3 H

Low Blue Light

Software blue light protection

Function

HDR

HDR 10

Device Ports

Input Port

1 × DP 1.4 (1920 × 1080@200 Hz), 1 × HDMI 2.0 (1920 × 1080@200 Hz)

Output Port

1 × Audio out

Power & Environmental Conditions

Power Supply

12 VDC, 3 A

Power Type

power adapter

Power Consumption

18 W (basic), 19 W (typ.), 23.8 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5° ± 2° /20° ± 2°

Product Dimensions

557.7 mm × 330.6 mm × 58.0 mm (21.96″ × 13.02″ × 2.28″) (W × H × D), without wall-mount bracket

Package Size

620 mm × 431 mm × 134 mm (24.41″ × 16.97″ × 5.28″) (W × H × D)

Unilateral Splicing

U/L/R/D: 6.98 mm/ 6.98 mm/ 6.98 mm/ 19.61 mm (0.27″ / 0.27″ / 0.27″ /0.77″)

Net Weight

2.93 kg (6.5 lb)

Gross Weight

4.0 kg (8.82 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

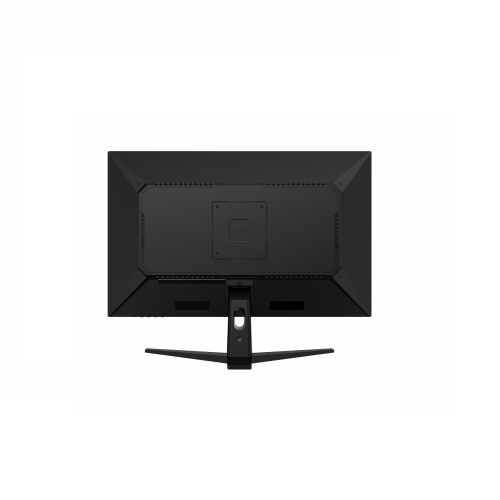

Wall Mount VESA

100 mm × 100 mm (3.94″×3.94″)

Accessory

Power adapter, DP cable, user’s manual, legal and regulatory information etc.

Certification

Certifications

CE EMC, CE LVD, CE ERP, CB
