BIOSTAR Z690MX2-E D4 ATX

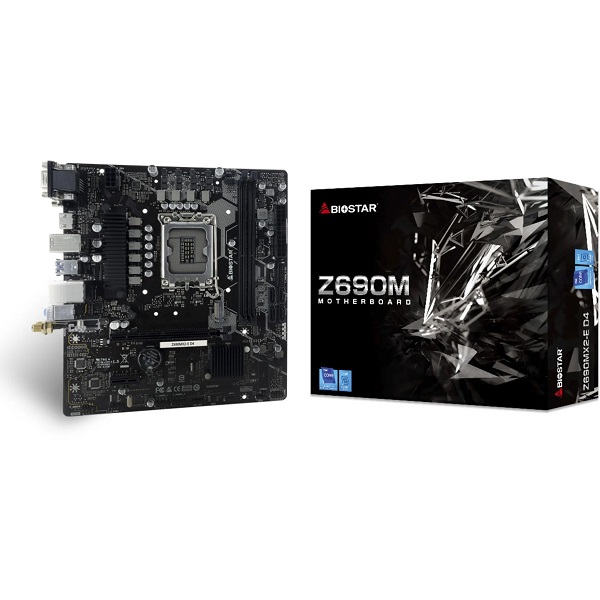

BIOSTAR Z690MX2-E D4 ATX Motherboard

EAN: 4712960688148

The BIOSTAR Z690MX2-E D4 is a high-performance Intel Z690 chipset motherboard designed for Intel’s LGA1700 platform. It supports 12th, 13th, and 14th Generation Intel Core processors, DDR4 memory, PCIe 4.0 graphics and storage, high-speed 2.5 Gigabit Ethernet, and expansion for Wi-Fi 6/6E modules. Built around the Intel Z690 chipset, it offers excellent performance for gaming, content creation, and professional desktop systems while maintaining compatibility with affordable DDR4 memory.

Specifications

Expansion Slots

• 1 × PCI Express 4.0 x16
• 1 × PCI Express 3.0 x1

Storage

• 1 × M.2 Socket (M-Key)
  • Supports 2240 / 2260 / 2280 SSDs
  • PCIe 4.0 x4 NVMe (64Gb/s)
  • SATA M.2 SSD support
• 4 × SATA III 6Gb/s ports
• Intel Rapid Storage Technology
• RAID 0, RAID 1, RAID 5, RAID 10 support

Graphics Support

Integrated graphics depend on the installed Intel processor.

Video Outputs

• HDMI (up to 4K)
• DVI-D
• VGA

Supports:

• DirectX 12
• HDCP

Networking

• Realtek RTL8125B
• 2.5 Gigabit Ethernet (10/100/1000/2500 Mbps)

Wireless Expansion

• M.2 Key-E slot for optional Wi-Fi 6 / Wi-Fi 6E & Bluetooth module
• Wi-Fi module is not included

Audio

• Realtek ALC897
• 7.1-Channel High Definition Audio

USB Connectivity

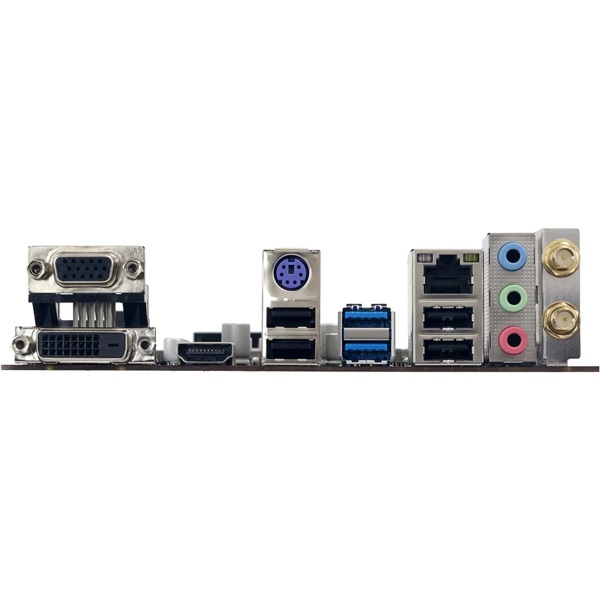

Rear I/O

• 2 × USB 3.2 Gen1
• 4 × USB 2.0

Internal Headers

• 2 × USB 3.2 Gen1
• 4 × USB 2.0

Rear I/O Ports

• 1 × PS/2 Keyboard/Mouse
• 1 × HDMI
• 1 × DVI-D
• 1 × VGA
• 2 × USB 3.2 Gen1
• 4 × USB 2.0
• 1 × RJ-45 2.5Gb LAN
• 3 × Audio Jacks
• 2 × Wi-Fi antenna connectors (for optional Wi-Fi module)

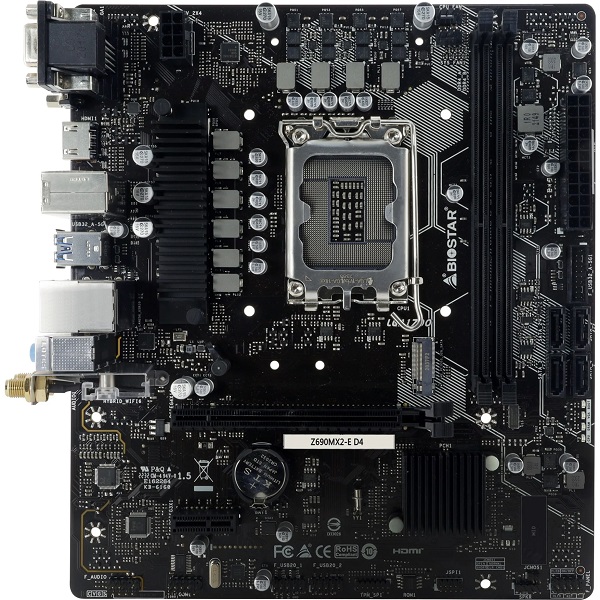

Internal Connectors

• 24-pin ATX Power
• 8-pin CPU Power
• 4 × SATA III
• 1 × PCIe Gen4 M.2 Socket
• 1 × M.2 Key-E Wi-Fi Socket
• CPU Fan Header
• System Fan Header
• Front Panel Header
• Front Audio Header
• USB 3.2 Gen1 Header
• USB 2.0 Headers
• TPM Header
• COM Header
• Speaker Header
• Clear CMOS Header

BIOS

• UEFI BIOS
• Supports hardware monitoring
• CPU/System temperature monitoring
• CPU/System fan monitoring
• Smart & Manual fan control
• Voltage monitoring

Operating System Support

• Windows 10 64-bit
• Windows 11 64-bit

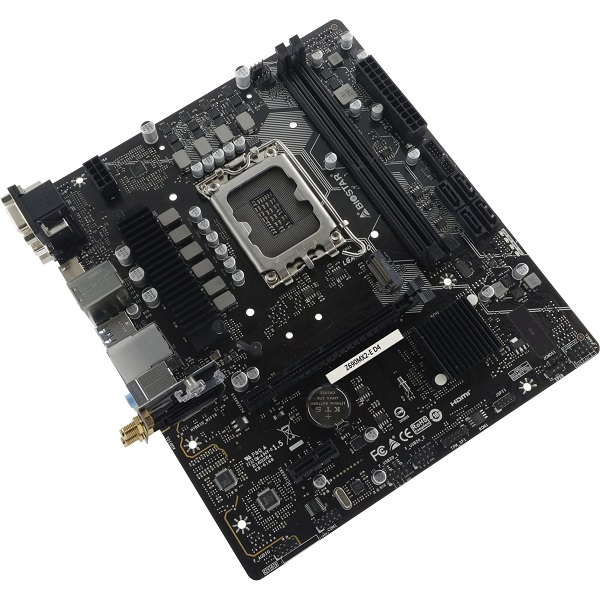

Key Features

• Intel Z690 chipset
• Intel LGA1700 socket
• Supports Intel 12th, 13th & 14th Gen processors
• DDR4 memory up to 64GB
• DDR4 4400+ MHz (OC)
• PCIe 4.0 x16 graphics slot
• PCIe 4.0 x4 NVMe M.2 SSD support
• 2.5 Gigabit LAN
• HDMI, DVI-D and VGA outputs
• Realtek ALC897 7.1 HD Audio
• Optional Wi-Fi 6 / Wi-Fi 6E expansion
• Intel XMP memory support
• RAID 0/1/5/10 support
• USB 3.2 Gen1 connectivity
