Cooler Master MasterCase H500M

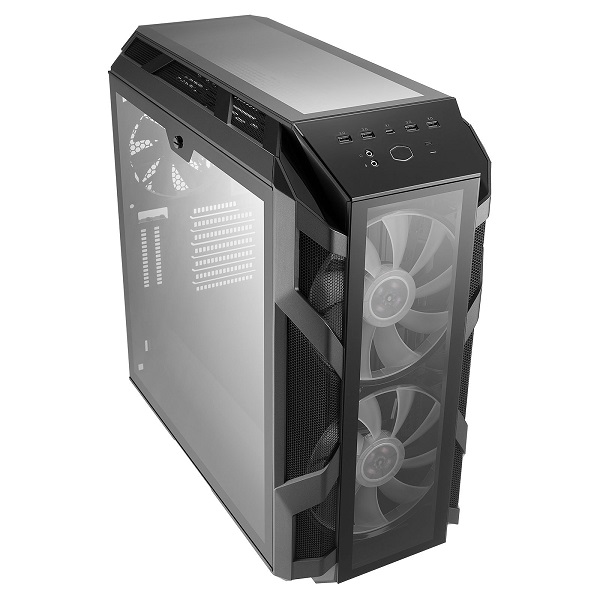

Cooler Master MasterCase H500M is a premium mid-tower PC case designed for high-performance gaming and enthusiast builds. It combines a steel chassis with four tempered-glass panels, large 200 mm ARGB intake fans, extensive radiator support, vertical GPU mounting capability, and a highly configurable internal layout.

The exact product is MasterCase H500M, model MCM-H500M-IHNN-S00, with EAN 4719512072165. The specifications below are based primarily on Cooler Master’s product documentation, with additional cross-checking against authorized distributors and independent technical documentation.

General Specifications

Cooler Master’s documentation identifies the case as an Iron Grey mid-tower measuring 544 × 248 × 546 mm and weighing 14.2 kg.

Motherboard Compatibility

The H500M supports a wide range of motherboard formats, including larger enthusiast boards:

• E-ATX — up to 12 × 10.7 inches
• ATX
• Micro-ATX
• Mini-ITX

This makes it suitable for everything from compact enthusiast systems to large ATX/E-ATX gaming workstations.

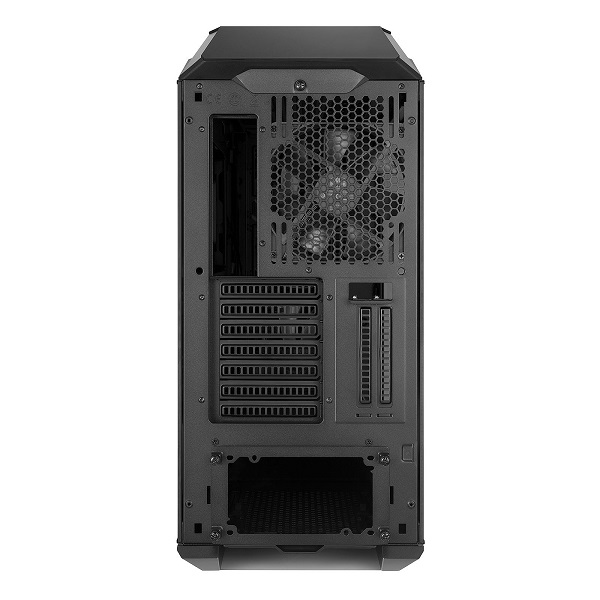

Expansion Slots

• 7 standard horizontal expansion slots
• 2 additional vertical GPU slots
• Total: 7 + 2
• Supports vertical graphics-card installation

The case also includes a graphics-card support arm, useful for supporting large and heavy GPUs.

Graphics Card Clearance

• Maximum GPU length: 412 mm

This provides enough room for many modern high-end graphics cards, although radiator/fan configuration can affect the usable clearance in particular installations.

CPU Cooler Clearance

• Maximum CPU cooler height: 190 mm

This allows the H500M to accommodate a wide selection of large tower-style air coolers.

Power Supply Compatibility

• PSU type: ATX PS2
• PSU location: Bottom-mounted
• Maximum PSU length: 200 mm

Cooling System

One of the main features of the H500M is its high-airflow configuration, centered around two large 200 mm ARGB front fans.

Pre-installed Fans

Front:

• 2 × 200 mm ARGB fans
• Fan speed: 800 RPM
• Fan connector: 3-pin
• ARGB connector: 3-pin ARGB

Rear:

• 1 × 140 mm fan
• Fan speed: 1,200 RPM
• Connector: 3-pin

Additional Fan Support

Front:

• 2 × 200 mm fans
  or
• Up to 3 × 120/140 mm fans

Top:

• Up to 2 × 200 mm fans
  or
• Up to 2 × 140 mm fans
  or
• Up to 3 × 120 mm fans

Rear:

• 1 × 120/140 mm fan

The case therefore supports up to 7 case fans depending on the selected sizes and configuration.

Liquid Cooling / Radiator Support

The H500M is designed for large liquid-cooling systems.

Front Radiator

Supports:

• 120 mm
• 140 mm
• 200 mm
• 240 mm
• 280 mm
• 360 mm

Maximum specified clearance is 70 mm when the radiator lid and M. port are removed.

Top Radiator

Supports:

• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm

Maximum radiator thickness clearance is 43 mm.

Rear Radiator

Supports:

• 120 mm
• 140 mm

A dedicated water-cooling pump bracket is also included in the chassis.

Storage

The H500M provides:

• 2 × combined 2.5″/3.5″ drive bays
• 6 × dedicated internal 2.5″ SSD positions
• 0 × 5.25″ bays

This gives the case substantial flexibility for both conventional hard drives and multiple SSDs.

Front I/O

The front/top I/O section includes:

• 1 × USB 3.1 Gen 2 Type-C
• 4 × USB 3.0 Type-A
• 1 × Audio input
• 1 × Audio output
• Reset / ARGB controller button

The reset button can be connected to the included ARGB controller and used as an ARGB lighting control button.

ARGB Lighting & Controller

The two 200 mm front fans are equipped with addressable RGB lighting.

The case includes an ARGB controller, allowing the lighting to be controlled directly from the case. The ARGB system can also be integrated with compatible motherboard RGB software/hardware through the appropriate ARGB connection.

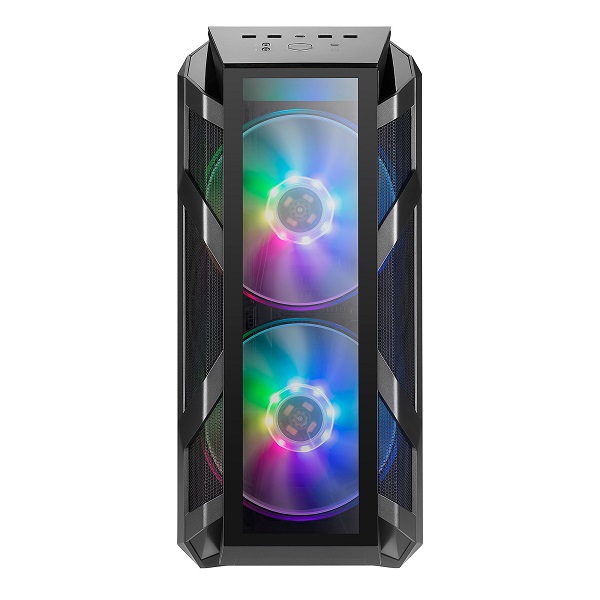

Front Panel Design

A particularly useful feature of the H500M is the inclusion of two interchangeable front panels:

• Tempered-glass front panel — prioritizes the appearance and visibility of the front fans.
• Mesh front panel — prioritizes airflow.

The panels can be swapped depending on whether the build is being optimized more toward aesthetics or airflow.

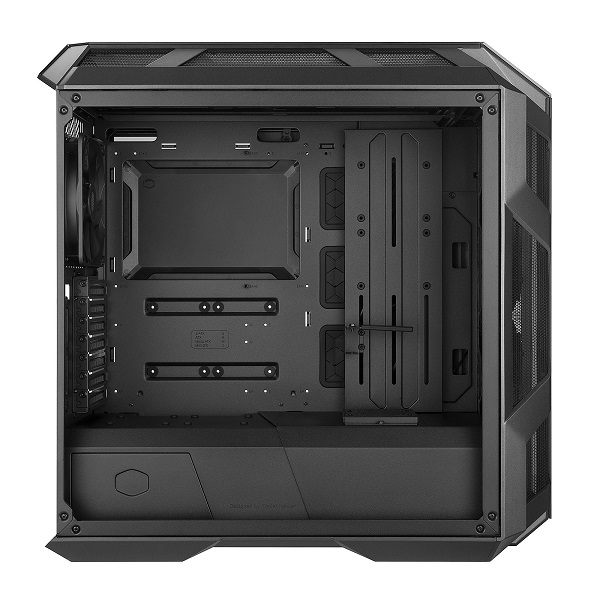

Tempered Glass & Internal Design

The H500M uses four tempered-glass panels, giving the internal components extensive visibility. Cooler Master also incorporates multiple internal covers to produce a cleaner-looking finished build.

The chassis includes nine covers designed to hide cables and other internal components and maintain a cleaner presentation. The PSU cover can also be configured to expose the power supply when desired.

Key Features

• Premium Iron Grey mid-tower chassis
• Four tempered-glass panels
• Interchangeable mesh and glass front panels
• 2 × 200 mm ARGB front fans included
• 1 × 140 mm rear fan included
• Supports up to 7 case fans
• Up to 360 mm radiators at the front and top
• Supports E-ATX, ATX, Micro-ATX and Mini-ITX
• GPU clearance up to 412 mm
• CPU cooler clearance up to 190 mm
• PSU clearance up to 200 mm
• 7 + 2 expansion slots
• Supports vertical GPU mounting
• Includes GPU support arm
• Built-in ARGB controller
• USB 3.1 Gen 2 Type-C connectivity
• 2 × 2.5″/3.5″ drive bays
• 6 × 2.5″ SSD positions
• Dedicated water-cooling pump bracket
• Extensive cable-management and component-cover system

Exact Product Identification

Cooler Master MasterCase H500M
Model: MCM-H500M-IHNN-S00
EAN: 4719512072165
UPC: 884102044663
Color: Iron Grey
Type: Mid Tower
Dimensions: 544 × 248 × 546 mm
Motherboard: E-ATX / ATX / Micro-ATX / Mini-ITX
GPU: Up to 412 mm
CPU Cooler: Up to 190 mm
PSU: ATX PS2, up to 200 mm
Fans Included: 2 × 200 mm ARGB front + 1 × 140 mm rear
Maximum Radiator: 360 mm
Expansion Slots: 7 + 2 vertical
Storage: 2 × 2.5″/3.5″ + 6 × 2.5″
I/O: 1 × USB-C + 4 × USB 3.0 + Audio I/O
