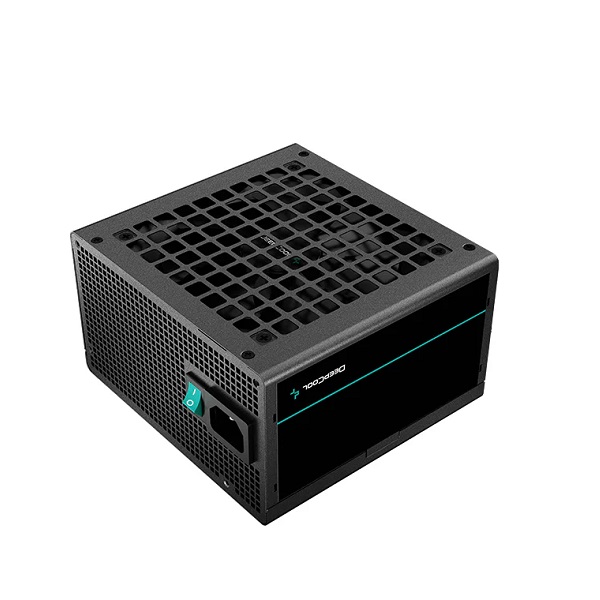

DEEPCOOL PF700D 700W (CERTIFICATION 80+ WHITE) BLACK

DEEPCOOL PF700D 700W 80+ White Black

The DeepCool PF700D 700W is an ATX power supply offering 700 W of rated power with 80 PLUS 230V EU White efficiency certification. It features an active PFC + Double Tube Forward design, a 120 mm Hypro-bearing fan for cooling, and fixed flat black cables for convenient installation and cable management. Its protection suite includes OPP, OVP, SCP and UVP, providing safeguards against common electrical faults. With its ATX12V V2.4 compatibility, PCIe power connectors and 24-pin motherboard connector, it is designed for standard desktop PC configurations

General Specifications

Electrical & Internal Design

• Topology: Active PFC + Double Tube Forward
• Capacitors: Taiwan bulk capacitor
• Power Good Signal: 100–500 ms
• Hold-up Time: ≥12 ms at 75% load
• Operating Temperature: 0–40°C
• MTBF: 100,000 hours
• ErP Regulation: ErP 2010

Protection Features

The PF700D incorporates the following protection systems:

• OPP — Over Power Protection
• OVP — Over Voltage Protection
• SCP — Short Circuit Protection
• UVP — Under Voltage Protection

Connectors

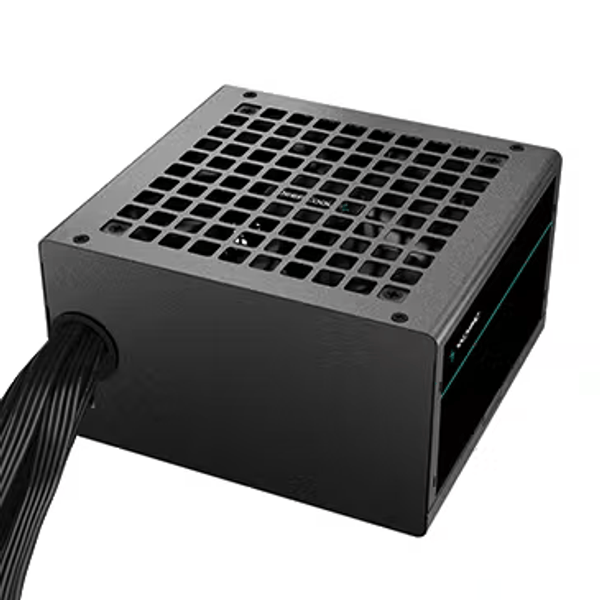

The power supply uses fixed flat black cables, which are designed to be easier to route and occupy less space inside the chassis than conventional round cable bundles.

Certifications & Compliance

• 80 PLUS: 230V EU White
• CB
• CCC
• CE
• UKCA
• EAC
• RCM
• KC
• ErP 2010
