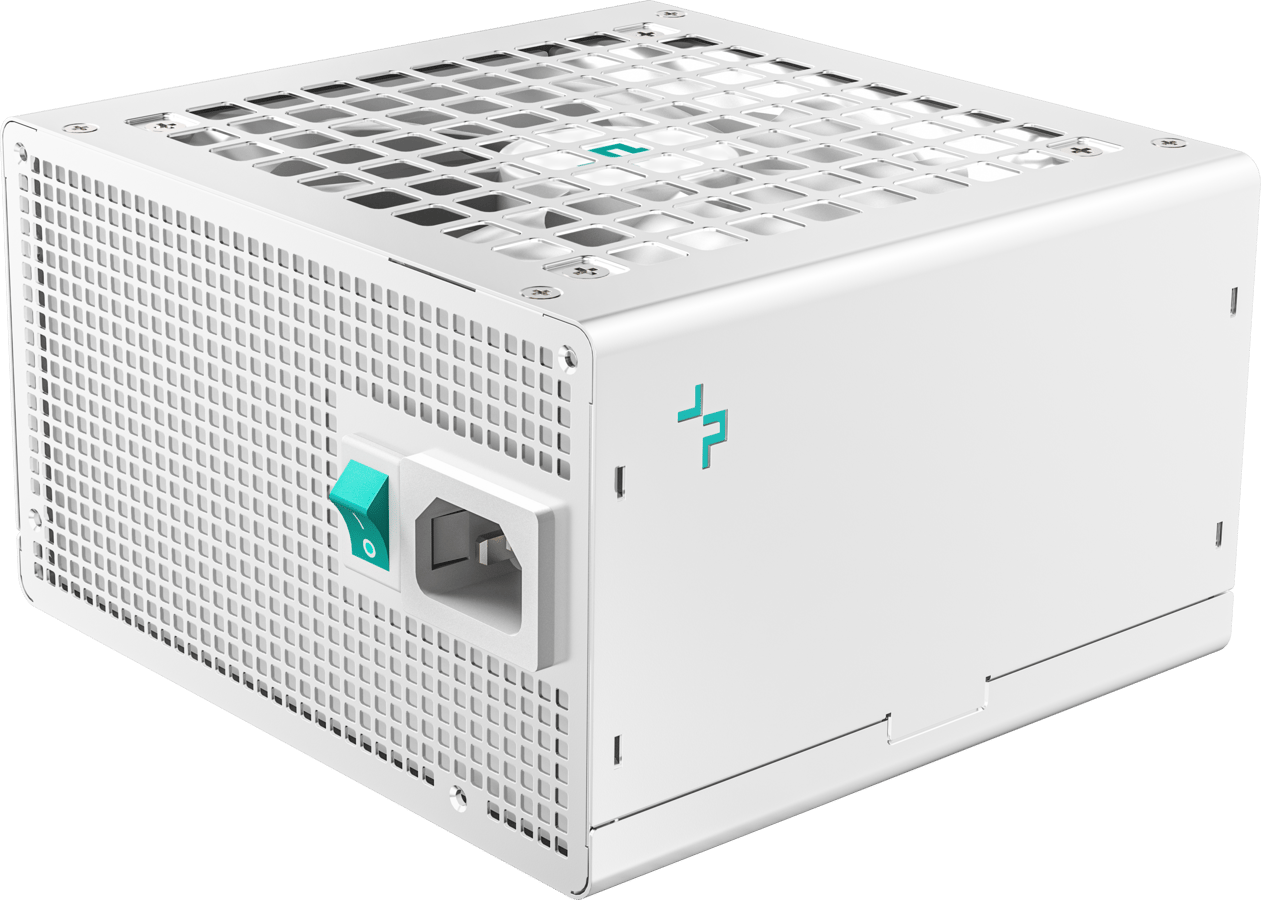

DEEPCOOL PL650-D 80+ Bronze White – Detailed Description

The DEEPCOOL PL650-D 80+ Bronze White is a 650W ATX power supply engineered to deliver stable, efficient power for modern desktop PCs. Built to meet the Intel ATX 3.1 specification, it supports the latest PCIe 5.x graphics cards through a native 12V-2×6 (16-pin) power connector while remaining compatible with previous-generation hardware. Its 80 PLUS Bronze efficiency certification, Active PFC design, DC-to-DC conversion, and comprehensive protection circuits ensure reliable operation for gaming, productivity, and workstation systems. A quiet 120mm Hydro Bearing fan provides effective cooling, while the compact 140mm chassis fits easily into most ATX computer cases.

Full Specifications

Feature	Specification
Brand	DeepCool
Model	PL650-D White
Power Output	650W Continuous
Form Factor	ATX
ATX Standard	Intel ATX 3.1
Efficiency Certification	80 PLUS Bronze
Efficiency	Up to 85% at typical (50%) load
Power Factor Correction	Active PFC
Power Design	DC-to-DC Conversion
Modular Design	Non-Modular
Cooling Fan	120mm Hydro Bearing (HYB) Fan
Fan Bearing	Hydro Bearing
Input Voltage	100–240V AC
Operating Temperature	0°C to 40°C
Power Good Signal	100–150 ms
Hold-Up Time	≥16 ms
MTBF	100,000 Hours
Dimensions	150 × 140 × 86 mm
Color	White

Power Connectors

1 × 24-pin (20+4) Motherboard Connector
2 × 8-pin (4+4) CPU/EPS Connectors
3 × PCIe 8-pin (6+2) Connectors
1 × Native 12V-2×6 (16-pin) PCIe 5.x Connector
6 × SATA Power Connectors
2 × 4-pin Peripheral (Molex) Connectors

Protection Features

Over Power Protection (OPP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Current Protection (OCP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
Surge & Inrush Protection (SIP)
No-Load Operation (NLO)

Key Features

Intel ATX 3.1 compliant for next-generation hardware
Native 12V-2×6 connector for PCIe 5.x graphics cards
80 PLUS Bronze certified energy efficiency
Stable DC-to-DC power conversion
Active PFC for improved power delivery
Quiet 120mm Hydro Bearing cooling fan
Compact 140mm chassis for broad case compatibility
Full suite of industrial-grade electrical protections
Suitable for modern gaming, creator, and productivity PCs
ErP 2014 compliant for reduced standby power consumption
