GALAX REVOLUTION-05 4FAN BLACK

Product description

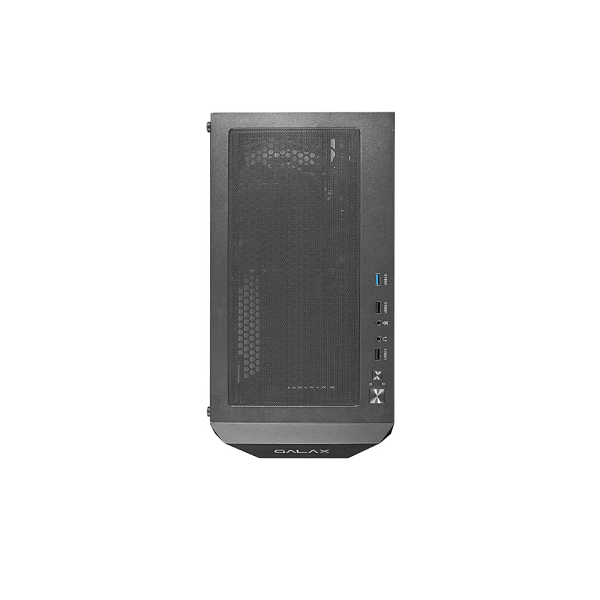

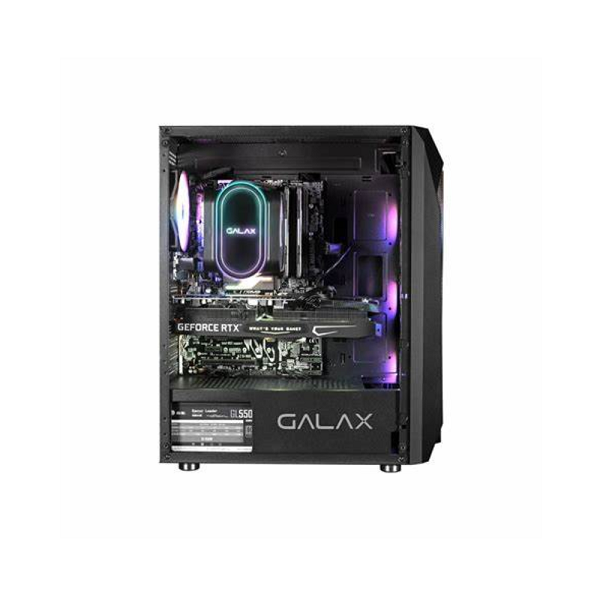

The REVOLUTION-05 is a spacious Mid-Tower ATX case built around a SPCC steel + tempered-glass chassis. Its front panel uses an ABS mesh design to facilitate airflow, while the left side is fitted with tempered glass for a clear view of the components. The case supports ATX, Micro-ATX and Mini-ITX motherboards and uses a standard ATX-format power supply.

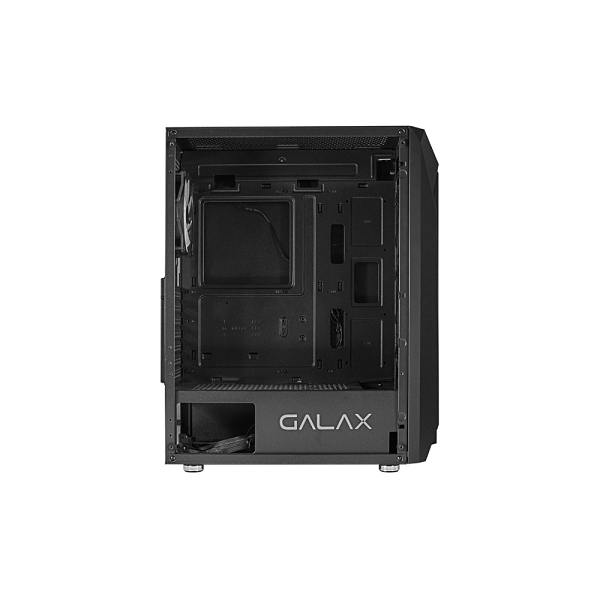

The interior provides room for graphics cards up to 330 mm long and CPU air coolers up to 160 mm high. GALAX also specifies support for vertical or horizontal graphics-card mounting, giving additional flexibility when assembling the system.

The case supports multiple cooling configurations, including up to three 120 mm fans at the front, two 120/140 mm fans at the top, one 120 mm rear fan and two 120 mm fans at the bottom. The REVOLUTION-05 also supports liquid-cooling radiators up to 360 mm at the front, 280 mm at the top and 120 mm at the rear.

Full technical specifications

Cooling and included fans

The 4FAN version is supplied with four pre-installed 120 mm fans.

For additional cooling, the chassis provides:

• Front: 3 × 120 mm
• Top: 2 × 120 mm or 2 × 140 mm
• Rear: 1 × 120 mm
• Bottom: 2 × 120 mm

Liquid-cooling compatibility is 360 mm / 280 mm / 240 mm at the front, 240/280 mm at the top, and 120 mm at the rear.

Storage

The case provides:

• 2 × 3.5″ internal HDD positions
• 3 × 2.5″ internal SSD positions
• No 5.25″ optical-drive bay

This gives a total of five internal storage positions across the 3.5″ and 2.5″ formats.

Front I/O

The front/top I/O section provides:

• 2 × USB 2.0
• 1 × USB 3.0
• HD Audio
• 2 physical buttons
