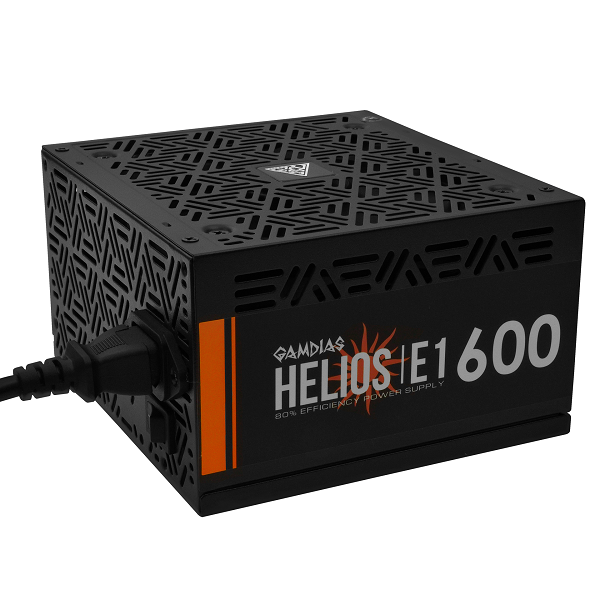

GAMDIAS HELIOS E1-600 — 600W Power Supply
The GAMDIAS HELIOS E1-600 is a 600W ATX power supply designed for mainstream desktop and gaming PC configurations. It uses an ATX12V v2.4 design, provides a single +12V rail rated at 40.5A, and includes automatic fan-speed optimization to adjust cooling according to temperature and load. GAMDIAS specifies efficiency of up to 80% and support for C6/C7 power states.
General Specifications
| Specification | Details |
|---|---|
| Brand | GAMDIAS |
| Model | HELIOS E1-600 |
| EAN-13 | 4712960136212 |
| Power Output | 600W |
| Form Factor | ATX |
| ATX Standard | ATX12V v2.4 |
| Efficiency | Up to 80% |
| Modular | No — non-modular |
| MB Sync | No |
| C6/C7 Power States | Yes |
| DC-to-DC | No |
| Silent Mode | No |
| Color | Black |
Power Specifications
The HELIOS E1-600 uses a single +12V rail capable of delivering 40.5A, equivalent to 486W on the +12V output. The +3.3V and +5V rails are each rated at 16A.
| Rail | Maximum Current | Maximum Output |
|---|---|---|
| +3.3V | 16A | — |
| +5V | 16A | — |
| +12V | 40.5A | 486W |
| -12V | 0.3A | 3.6W |
| +5VSB | 2.5A | 12.5W |
| Total Power | — | 600W |
AC Input
- Input Voltage: 220–240V
- Input Current: 6A
- Frequency: 47–63Hz
Cooling
The power supply uses a 120mm fan with automatic fan-speed optimization. The fan adjusts its operating speed according to temperature/load conditions, helping balance cooling performance and operating noise.
Connectors
The non-modular cable configuration provides:
- 1 × 20+4-pin ATX motherboard connector
- 1 × 4+4-pin CPU/EPS connector
- 2 × 6+2-pin PCIe connectors
- 5 × SATA connectors
- 2 × Molex 4-pin connectors
- 1 × Floppy/FDD connector
The EPS cable is specified at 620mm in available manufacturer-related specifications.
Protection Features
The HELIOS E1-600 incorporates the following protection mechanisms:
- OVP — Over Voltage Protection
- UVP — Under Voltage Protection
- OPP — Over Power Protection
- SCP — Short Circuit Protection
Physical Specifications
- Dimensions (L × W × H): 140 × 150 × 86 mm
- Form Factor: ATX
- Cable System: Non-modular
- Color: Black
Key Features
- 600W total power output
- ATX12V v2.4 compatibility
- Up to 80% efficiency
- Single +12V rail, 40.5A / 486W
- 120mm cooling fan
- Automatic fan-speed optimization
- Active PFC according to multiple product specifications
- Support for C6/C7 power states
- 2 × PCIe 6+2-pin connectors for graphics cards
- Non-modular cable design
- OVP / UVP / OPP / SCP protection
- Compact 140 × 150 × 86mm ATX chassis
