GAMEMAX GE-700 — 700W 80+ Standard Power Supply

Product Description

The GAMEMAX GE-700 is a 700W ATX power supply from the GAMEMAX ECO Gamer series, designed for mainstream home, office and gaming PC configurations. It features 80 PLUS Standard efficiency, Active PFC, and a single +12V rail capable of delivering up to 576W, making it suitable for systems with dedicated graphics cards requiring PCIe 6+2-pin power connectors. GAMEMAX also specifies protected DC output and reduced ripple/noise characteristics for stable system operation.

The unit uses a non-modular cable design, with a 120mm automatically controlled fan for active cooling. Its connector selection includes a 20+4-pin motherboard connector, 4+4-pin CPU connector, two PCIe 6+2-pin connectors, five SATA connectors and three Molex connectors.

Full Specifications

The electrical specifications above are consistent with GAMEMAX’s official GE-series documentation: the GE-700 is rated at 700W, with 20A on +3.3V, 20A on +5V, 48A on +12V, 0.5A on -12V, 2.5A on +5VSB and 120W maximum combined +3.3V/+5V power.

Connectors

• 1 × 20+4-pin ATX motherboard
• 1 × 4+4-pin ATX12V CPU
• 2 × 6+2-pin PCIe
• 5 × SATA
• 3 × 4-pin Molex
• No floppy connector

The supplied connector configuration and 550mm motherboard/CPU cable lengths are independently listed by DNS for the exact GameMax ECO Gamer 700W [GE-700] model.

Cooling & Construction

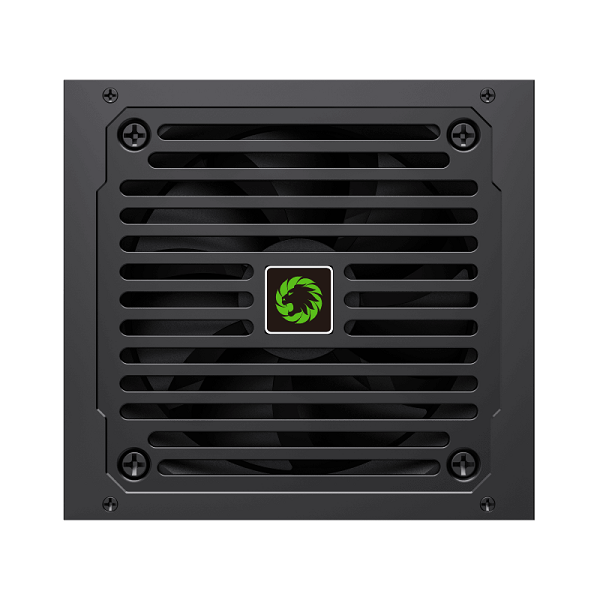

The GE-700 uses a 120mm fan with automatic speed control and active cooling. The power supply has a black chassis and fixed protective-braided cables. It does not include a hybrid/fanless operating mode.

Protection

GAMEMAX describes the GE-700 as having fully protected functions. The documented protection set includes:

• OPP — Over Power Protection
• OCP — Over Current Protection
• OVP — Over Voltage Protection
• UVP — Under Voltage Protection
• SCP — Short Circuit Protection
• SIP — Surge & Inrush Protection
