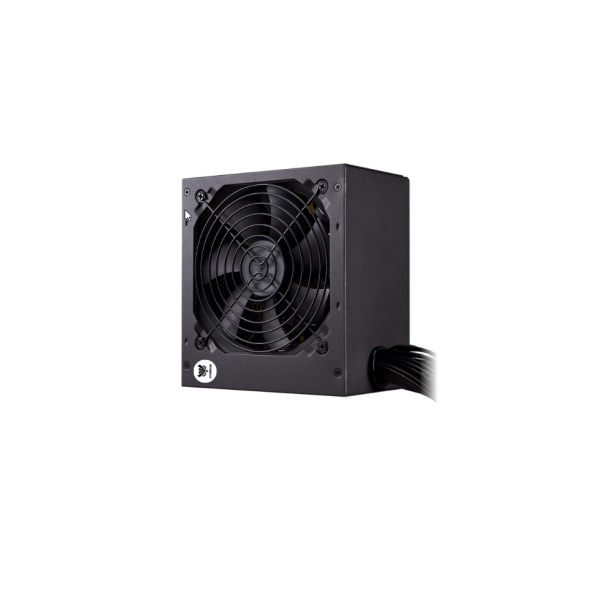

HYBROK 650W 80+ BRONZE

HIGH-END 80 PLUS BRONZE SEMI-MODULAR POWER SUPPLY

HYBROK PSU BRONZE 650W 80 PLUS — 230V

The HYBROK PSU BRONZE 650W provides 650 W of rated power for desktop systems requiring a dependable ATX power supply. Its 80 PLUS Bronze certification provides improved energy efficiency, with HYBROK specifying up to 88% efficiency at 50% load. The unit uses Active PFC (APFC) and supports 200–240 V AC at 50–60 Hz, making it suited to the 230 V electrical standard indicated for this version.

Full Specifications

The voltage, frequency, current, dimensions, non-modular construction, APFC and efficiency figures are listed directly by HYBROK. The 120 mm fan and 200–240 V input specification are also independently consistent with listings carrying the supplied EAN.

Connectors

A trusted Algerian retailer lists the following connector configuration for the HYBROK 650W 80+ Bronze:

• 1 × ATX 24-pin — motherboard
• 1 × CPU 4+4-pin — processor power
• 2 × PCI-E 6+2-pin — graphics card
• 6 × SATA — storage drives and other SATA peripherals
• 3 × Molex — compatible peripherals/accessories

Protection Features

The same retailer specifies the following integrated protections:

• OVP — Over Voltage Protection
• UVP — Under Voltage Protection
• OPP — Over Power Protection
• SCP — Short Circuit Protection
• OTP — Over Temperature Protection
