MSI MAG A650BN 650W 80+ BRONZE

Main Specifications

Power Output

The MAG A650BN provides a 54A +12V rail rated at 648W, allowing the majority of the PSU’s available power to be delivered to the CPU and GPU. The +3.3V and +5V rails are rated at 20A each, with a combined output of 110W.

Connectors

The PSU comes with permanently attached cables and provides the following connectors:

• 1 × ATX 20+4-pin motherboard connector
• 1 × EPS 4+4-pin CPU power connector
• 2 × PCIe 6+2-pin graphics card connectors
• 5 × SATA 15-pin connectors
• 2 × Molex 4-pin peripheral connectors
• 1 × FDD 4-pin connector

Cooling and Design

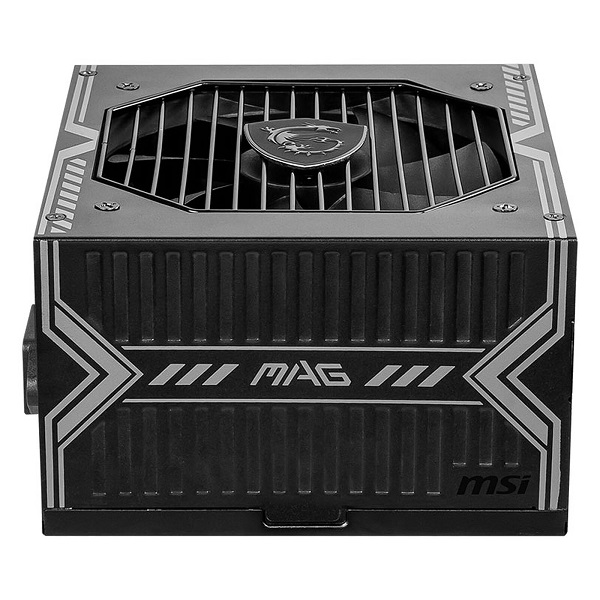

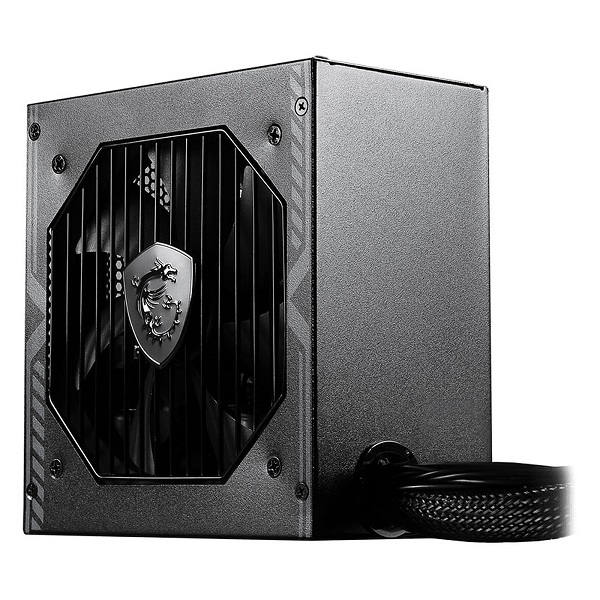

The MAG A650BN uses a 120 mm low-noise fan with a sleeve bearing for cooling. MSI specifies a DC-to-DC circuit design, intended to improve output-voltage stability, together with an active PFC circuit for improved power efficiency.

Protection Features

The power supply incorporates multiple protection mechanisms:

• OCP – Over Current Protection
• OVP – Over Voltage Protection
• OPP – Over Power Protection
• OTP – Over Temperature Protection
• SCP – Short Circuit Protection

Input Specifications

• Input voltage: 100–240V AC
• Input current: 10A maximum at 115V / 5A maximum at 230V
• Input frequency: 50–60 Hz
• PFC type: Active PFC
• Rated power: 650W
• Efficiency: 80 PLUS Bronze, up to 85%

Physical Specifications

• PSU type: ATX
• Dimensions: 140 × 150 × 86 mm
• Fan: 120 mm
• Fan bearing: Sleeve Bearing
• Cable configuration: Non-modular
• Color: Black

Key Features

• • 650W continuous power output
  • 80 PLUS Bronze efficiency certification
  • Up to 85% efficiency
  • Single +12V rail delivering up to 648W
  • DC-to-DC circuit design
  • Active PFC
  • 120 mm low-noise sleeve-bearing fan
  • Two PCIe 6+2-pin connectors
  • Five SATA connectors
  • Comprehensive OCP, OVP, OPP, OTP and SCP protection
  • Compact ATX 140 × 150 × 86 mm design
  • Non-modular fixed-cable configuration
