RAIDMAX V100 RGB WHITE

RAIDMAX V100 RGB WHITE

Brand: Raidmax
Model: V100 Vector
Product reference: V100
Color: White
Type: Mid-Tower PC Case
EAN: 9872200994014

Product description

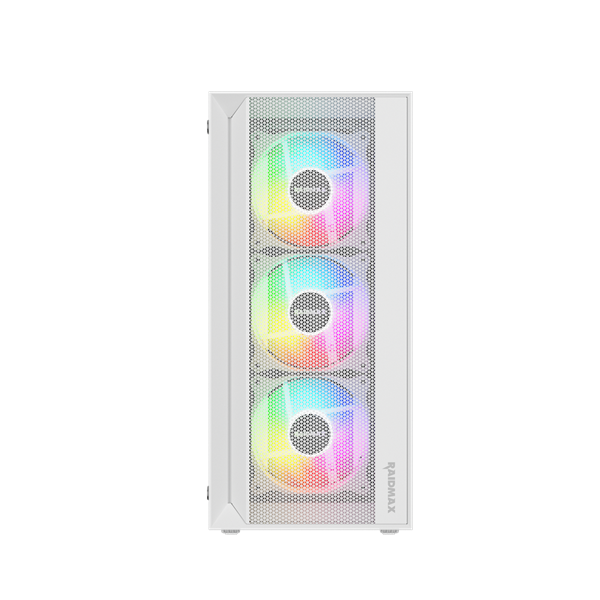

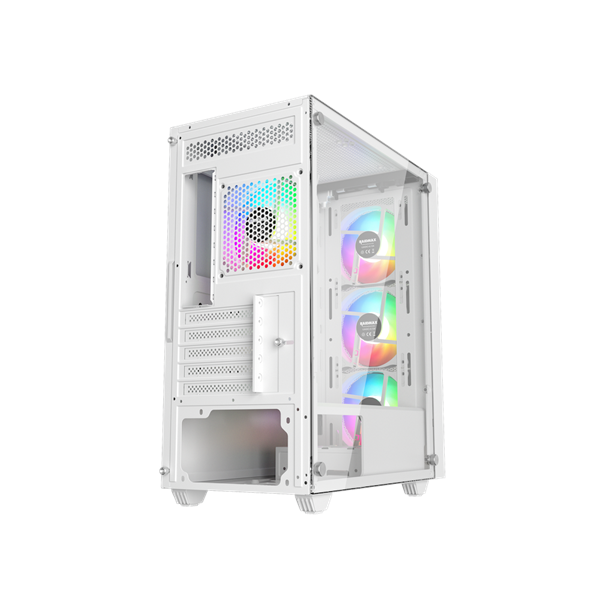

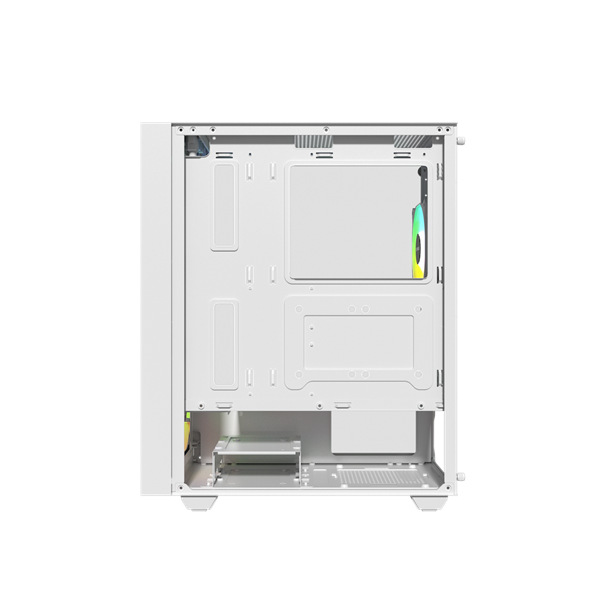

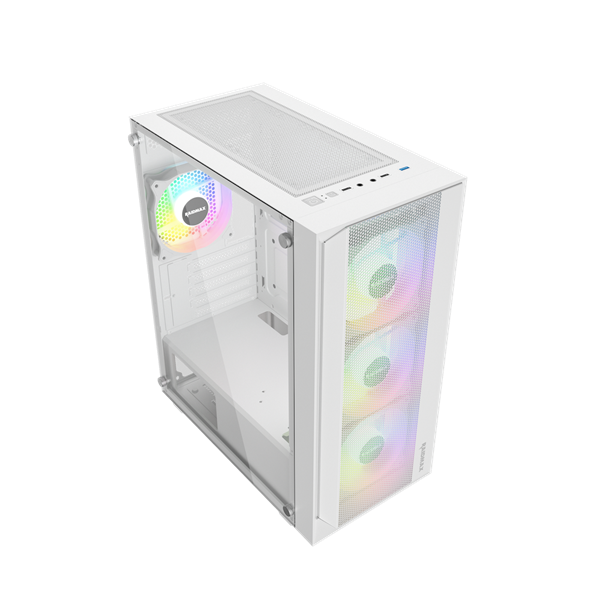

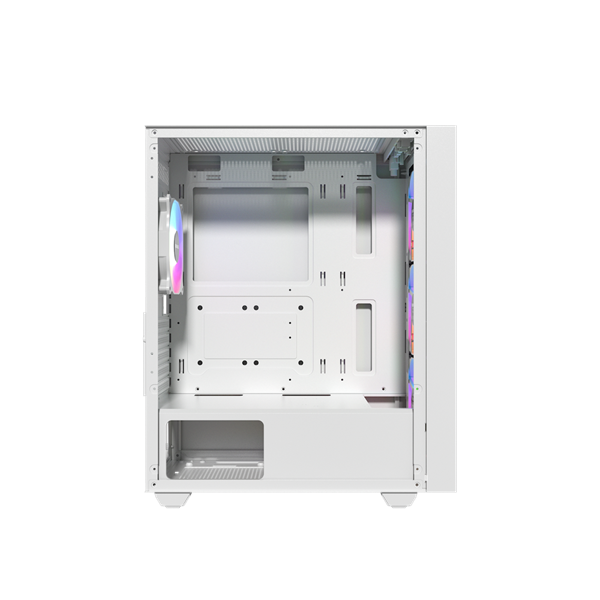

The Raidmax V100 Vector RGB White is a mid-tower PC case designed around a mesh front panel for improved airflow, combined with a tempered-glass side panel for displaying the internal components. Its compact ATX-compatible layout supports ATX, Micro-ATX and Mini-ITX motherboards, while the pre-installed RGB fans provide the case with its distinctive illuminated appearance.

The case comes equipped with four 120 mm static RGB fans, with three positioned at the front and one at the rear. It also provides additional fan mounting positions at the top and supports front-mounted radiators up to 280 mm, making it suitable for conventional air cooling as well as compatible liquid-cooling configurations.

The top panel includes a magnetic dust filter, while the side panel uses 4 mm tempered glass, providing both easier maintenance and a clear view of the components inside.

Full specifications

Cooling

The V100 is configured for airflow through its mesh front panel. Fan mounting options are:

• Front: 3 × 120 mm or 2 × 140 mm
• Top: 2 × 120 mm or 2 × 140 mm
• Rear: 1 × 120 mm
• Included: 4 × 120 mm static RGB fans
• Front radiator: 120 / 140 / 240 / 280 mm
• Rear radiator: up to 120 mm

Raidmax specifically lists the front as supporting up to a 280 mm radiator.

Storage

The chassis provides:

• 2 × 3.5-inch drive positions
• 1 × 2.5-inch drive position

Front I/O

The upper/front I/O area provides:

• 1 × USB 3.0
• 2 × USB 2.0
• HD Audio
• Power button
• Reset button

Compatibility

The V100 supports:

• ATX
• Micro-ATX
• Mini-ITX

Maximum component clearances specified by Raidmax are 320 mm for the graphics card and 160 mm for the CPU cooler. The power supply is a standard PS2/ATX unit installed at the bottom of the chassis.

Key features

• White mid-tower design
• Mesh front panel for airflow
• 4 mm tempered-glass side panel
• 4 × pre-installed 120 mm static RGB fans
• ATX / Micro-ATX / Mini-ITX motherboard compatibility
• Support for graphics cards up to 320 mm
• CPU cooler clearance up to 160 mm
• Front radiator support up to 280 mm
• Magnetic top dust filter
• 7 expansion slots
• Bottom-mounted ATX/PS2 power supply
• USB 3.0 + 2 × USB 2.0 front connectivity
