RAIDMAX V159 RGB WHITE
9 200 DA
RAIDMAX V159 RGB WHITE

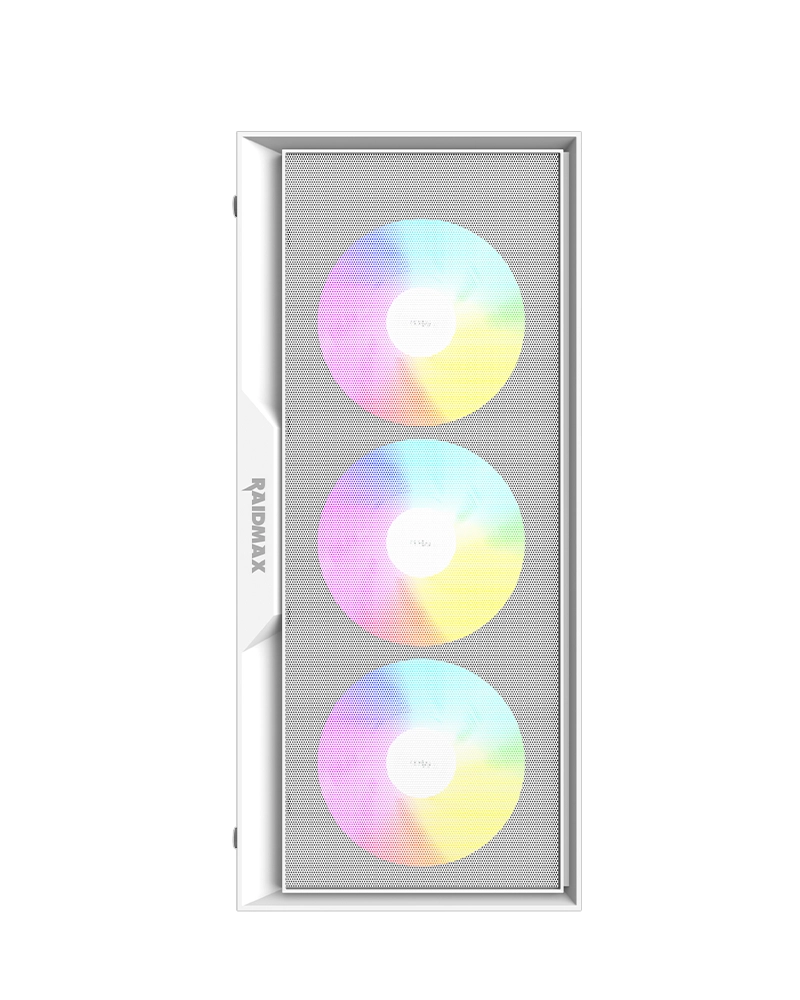

WAVE MESH DESIGN
Our design features an expansive mesh front panel that maximizes airflow intake, while its distinctive wind-inspired pattern adds a striking visual element, elevating the overall aesthetic to an exceptional level.
LIGHTING EFFECTS
It comes equipped with four 120mm ARGB fans—three at the front and one at the rear—whose lighting effects can be easily controlled via the reset button or any ARGB-compatible motherboard.

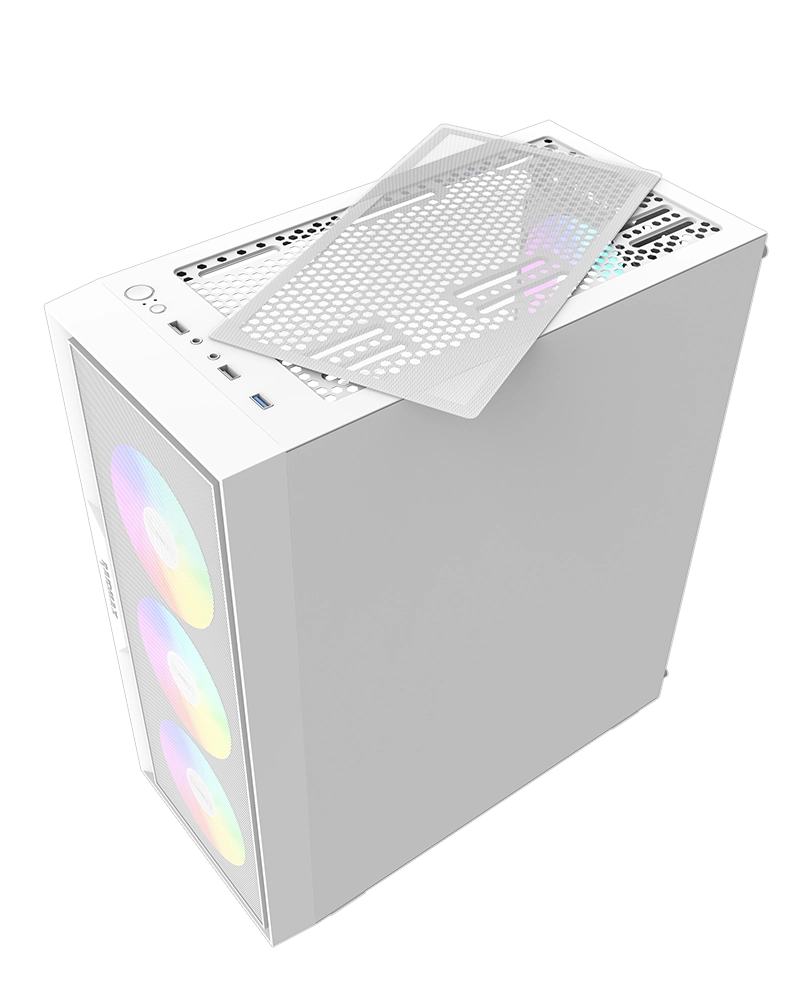

EASY MAINTENANCE
It comes equipped with magnetic dust filters on the top of the case, ensuring effortless and convenient maintenance.

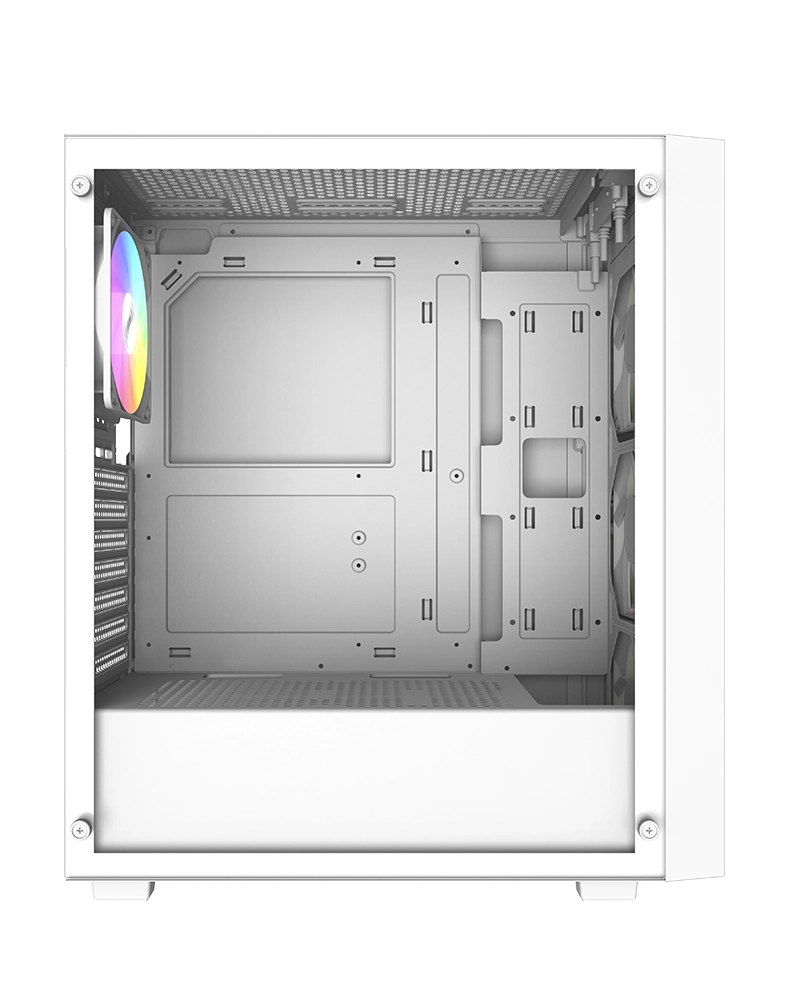

TEMPERED GLASS SIDE PANEL
It is designed with a tool-less side panel with 4mm tempered glass, allowing you to easily open, remove, and assemble the panel using just your fingers.
I/O Panel
COOLING SYSTEM
COMPATIBILITY & CLEARANCES
AIRFLOW DIAGRAM
SPECIFICATIONS
| PRODUCT NAME | V159 |
| PRODUCT NO. | V159TBF (Black) / V159TWF (White) |
| DIMENSIONS (mm) | 390(L) x 200(W) x 445(H) |
| MOTHERBOARD SUPPORT | ATX / Micro-ATX / Mini-ITX |
| EXPANSION SLOTS | 7 |
| MATERIALS | Plastic, Steel, Tempered Glass |
| 3.5″HDD / 2.5″SSD | 2 / 2 |
| I/O Ports | USB3.0 x 1, USB2.0 x 2, HD Audio, Power, Reset, LED |
| FAN Support | Front: 120mm x 3 , Top: 120mm x 2 / 140mm x 2, Rear: 120mm x 1, PSU Chamber: 120mm x 2 |
| PREINSTALLED FAN (s) | ARGB LED Fan 120mm x 3 (Front) / ARGB LED Fan 120mm x 1 (Rear) |
| RADIATOR Support | Front: 360mm , Top: 360mm , Rear: 120mm |
| MAX. GPU LENGTH | 320mm |
| MAX.CPU COOLER HEIGHT | 160mm |
| LEFT SIDE PANEL | Tempered Glass |
| RIGHT SIDE PANEL | Steel |
| PSU SUPPORT | Standard PS2 / ATX PSU ( Bottom Mounted) |
