RAIDMAX VORTEX 800W 80+ GOLD RX-800AE

The Raidmax Vortex 800W (RX-800AE) is a high-performance, non-modular ATX power supply engineered for demanding system builds, including multi-core processors and multi-GPU configurations. Carrying an 80 PLUS Gold certification, it achieves up to 90% energy efficiency under real-world load conditions, which minimizes heat dissipation and lowers energy consumption. The unit utilizes a robust single +12V rail architecture designed to ensure stable power delivery and broaden utilization possibilities for high-end hardware.

Technical Specifications

Core Protections & Features

The RX-800AE integrates heavy-duty protective circuitry to safeguard critical system components from power anomalies:

• OVP (Over Voltage Protection)

• OPP (Over Power Protection)

• SCP (Short Circuit Protection)

• UVP (Under Voltage Protection)

• OCP (Over Current Protection)

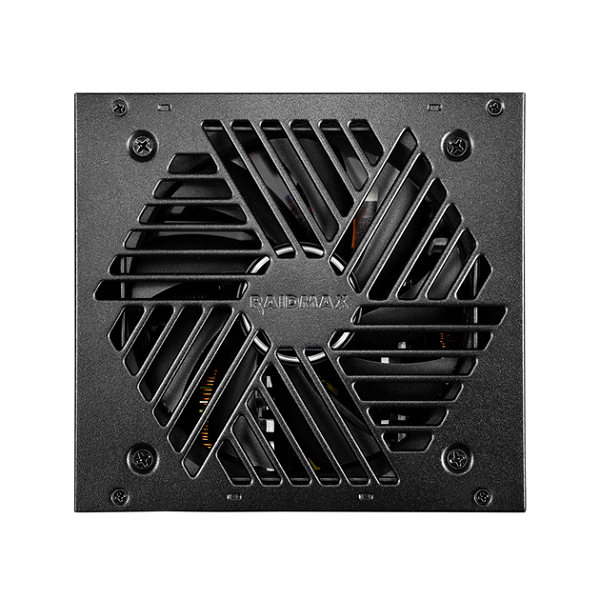

Thermal regulation is managed by a thermally controlled 120 mm fan, which dynamically adjusts its speed based on the power supply’s temperature and load, maintaining a balance between cooling performance and noise reduction.

Cable & Connector Configuration

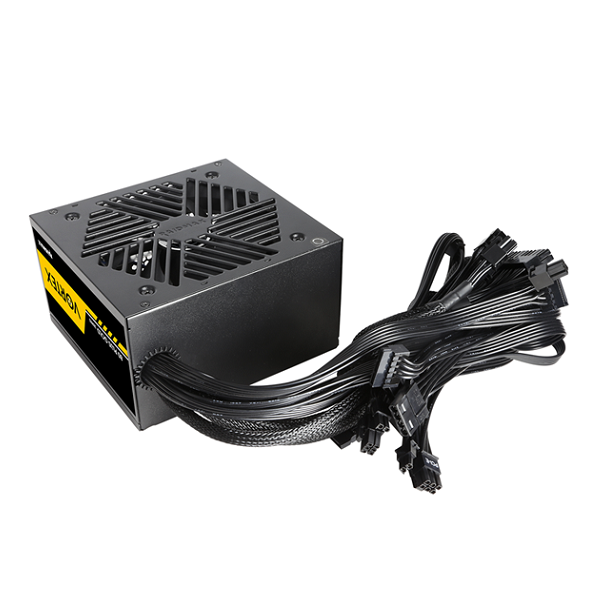

The non-modular cables are fully sleeved to facilitate cleaner cable management inside the chassis. The connector layout supports modern mainstream and high-end hardware:

• 1 × 24-Pin ATX Main Power

• 2 × 8-Pin (4+4) EPS/CPU Power

• 4 × 8-Pin (6+2) PCIe Power (Supports Multi-GPU)

• 6 × SATA Power

• 3 × 4-Pin Peripheral (Molex)

• 1 × Floppy Drive (FDD)
