Full Specifications

Memory

• 2 × DDR5 DIMM slots
• Supports up to 128 GB total memory
• Dual-channel architecture
• DDR5 memory speeds up to 6000+ MT/s (OC)
• Supports AMD EXPO™ and Intel XMP memory profiles
• Supports Non-ECC, Unbuffered DDR5 memory

Expansion Slots

• 1 × PCI Express 4.0 x16 slot
• 1 × PCI Express 3.0 x1 slot

Storage

• 1 × M.2 (Key M) slot
  • Supports 2242 / 2260 / 2280 SSDs
  • PCIe 4.0 x4 (64 Gb/s)
  • NVMe SSD support
• 4 × SATA III 6 Gb/s ports
• RAID 0 / RAID 1 / RAID 10 support for SATA drives

Graphics Support

Graphics output depends on the installed AMD processor.

Video outputs include:

• 1 × HDMI
• 1 × DisplayPort 1.2
• Supports DirectX 12
• HDCP support
• Up to 4K display output with compatible Ryzen processors featuring integrated graphics.

Networking

• Realtek RTL8111H Gigabit Ethernet
• 10/100/1000 Mbps LAN

Audio

• Realtek ALC897 High Definition Audio
• 7.1-channel HD Audio
• Hi-Fi Audio design

USB Connectivity

Rear I/O

• 4 × USB 3.2 Gen 1 Type-A
• 2 × USB 2.0 Type-A

Internal Headers

• 1 × USB 3.2 Gen 2 Type-C front-panel header
• 1 × USB 3.2 Gen 1 header (supports 2 ports)
• 2 × USB 2.0 headers (supports 4 ports)

Total USB support:

• 1 × USB 3.2 Gen 2 Type-C
• 6 × USB 3.2 Gen 1
• 6 × USB 2.0

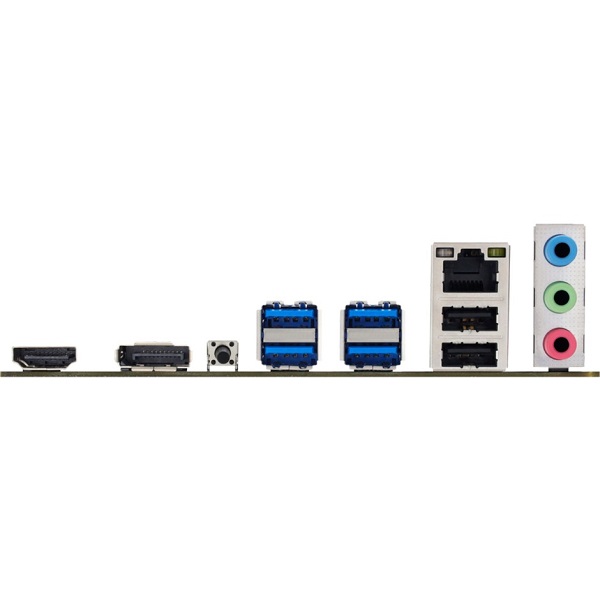

Rear I/O Ports

• 1 × BIOS Update Button
• 1 × HDMI
• 1 × DisplayPort
• 4 × USB 3.2 Gen 1
• 2 × USB 2.0
• 1 × Gigabit LAN (RJ-45)
• 3 × Audio Jacks

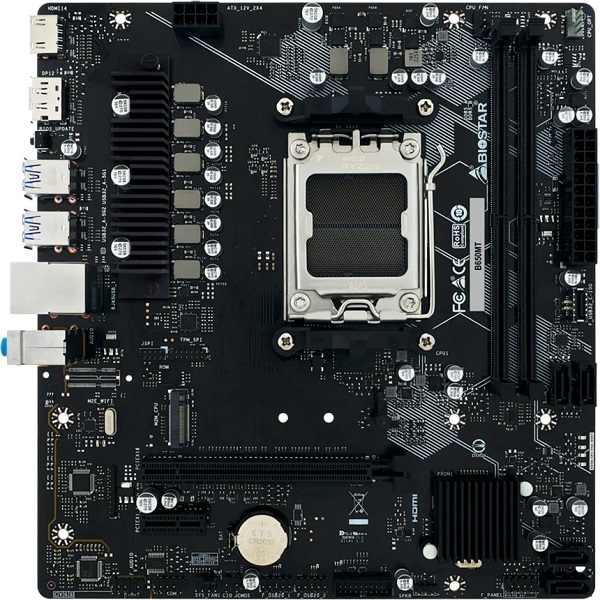

Internal Connectors

• 1 × 24-pin ATX Power
• 1 × 8-pin CPU Power
• 4 × SATA III connectors
• 1 × M.2 Socket
• 1 × CPU Fan header
• 1 × CPU_OPT / Water Pump header
• 1 × System Fan header
• 1 × Front Panel header
• 1 × Front Audio header
• 1 × TPM header
• 1 × COM header
• 1 × Clear CMOS header
• 1 × Speaker header
• USB headers for front-panel connectivity

Hardware Monitoring

• CPU temperature monitoring
• System temperature monitoring
• CPU fan monitoring
• System fan monitoring
• Smart and Manual fan control
• CPU voltage monitoring
• DDR voltage monitoring

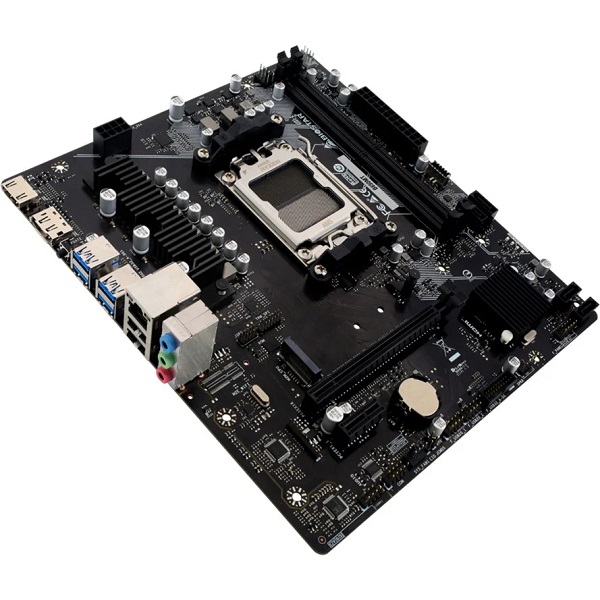

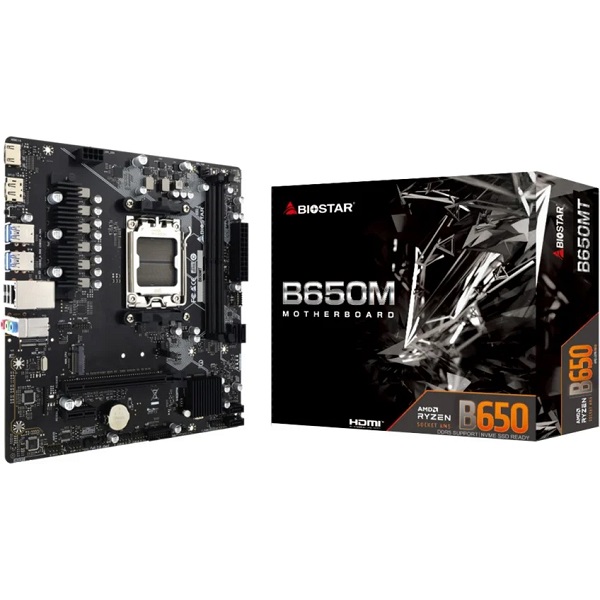

Key Features

• AMD B650 chipset
• Socket AM5 platform
• Supports AMD Ryzen™ 7000 / 8000G / 9000 processors
• Dual-channel DDR5 memory up to 128 GB
• DDR5 6000+ MT/s (OC) support
• AMD EXPO™ & Intel XMP memory support
• PCIe 4.0 x16 graphics slot
• PCIe 4.0 x4 NVMe M.2 SSD support
• 4 × SATA III ports
• HDMI + DisplayPort outputs
• Realtek Gigabit LAN
• Realtek ALC897 7.1 HD Audio
• Front USB 3.2 Gen2 Type-C header
• BIOS Update Button
• Micro-ATX form factor
