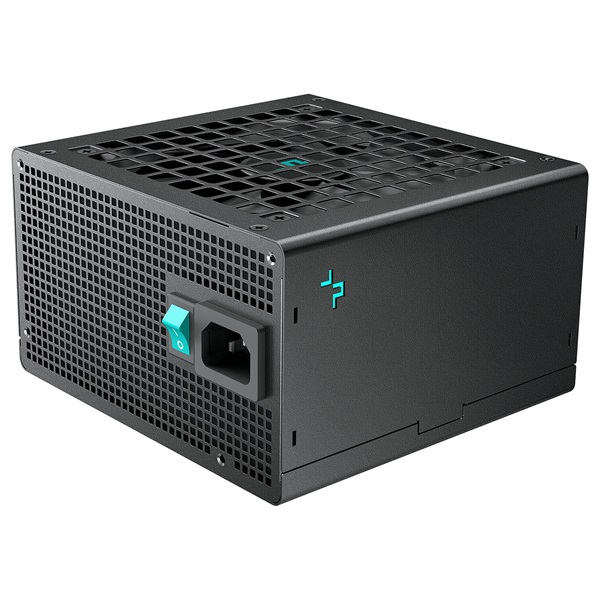

DEEPCOOL PL800-D 80+ BRONZE BLACK

DEEPCOOL PL800D 80+ BRONZE BLACK — 800W

The DeepCool PL800D 800W 80+ Bronze Black is a high-capacity ATX 3.1 non-modular power supply intended for modern desktop PCs and gaming configurations. Its 800 W total output is delivered through a powerful +12 V rail rated at 66.5 A / 798 W, while active PFC and DC-to-DC conversion provide the underlying power architecture. The 80 PLUS Bronze certification guarantees at least 85% efficiency under typical 50% loading.

For modern graphics cards, the PL800D incorporates a native 16-pin 12V-2×6 PCIe connector rated up to 450 W, alongside three traditional PCIe 6+2-pin connectors and two CPU/EPS connectors. Its 120 mm hydro-bearing fan, 16 ms or greater hold-up time, ATX 3.1 compliance and comprehensive electrical protections make it suited to contemporary gaming and performance-oriented PC systems.

General Specifications

Electrical Specifications

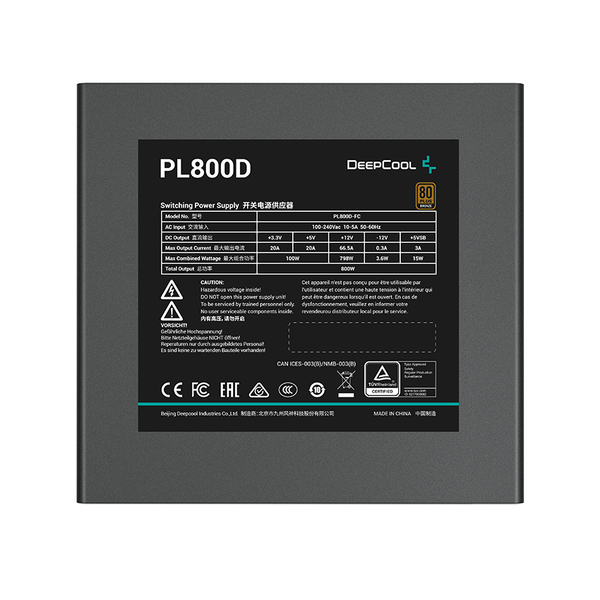

The +12 V rail is rated at 66.5 A / 798 W, making it the principal power-delivery rail for the CPU and graphics card.

Efficiency & Power Design

• 80 PLUS Bronze certified
• ≥85% efficiency at typical 50% load
• Active PFC
• DC-to-DC conversion
• Dual-transistor forward topology
• Power Good signal: 100–150 ms
• Hold-up time: ≥16 ms
• Designed for the Intel ATX 3.1 standard
• Supports ATX 3.1 power excursions, with the ability to provide 2× total system power for 0.1 ms
• Native 12V-2×6 PCIe power connector rated for up to 450 W

Cooling

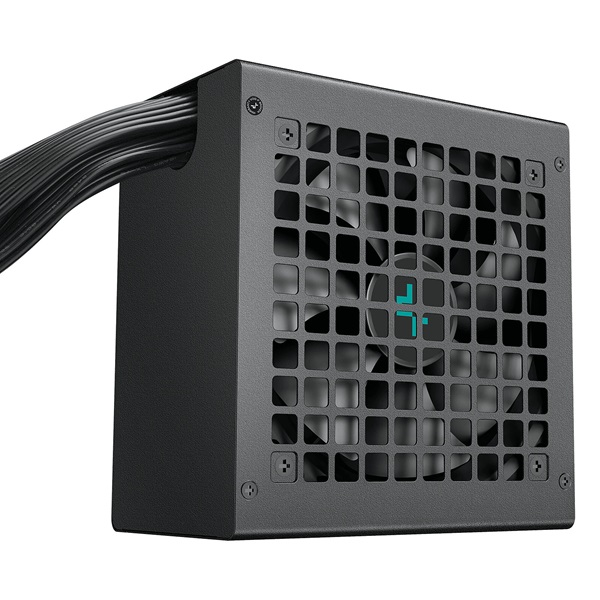

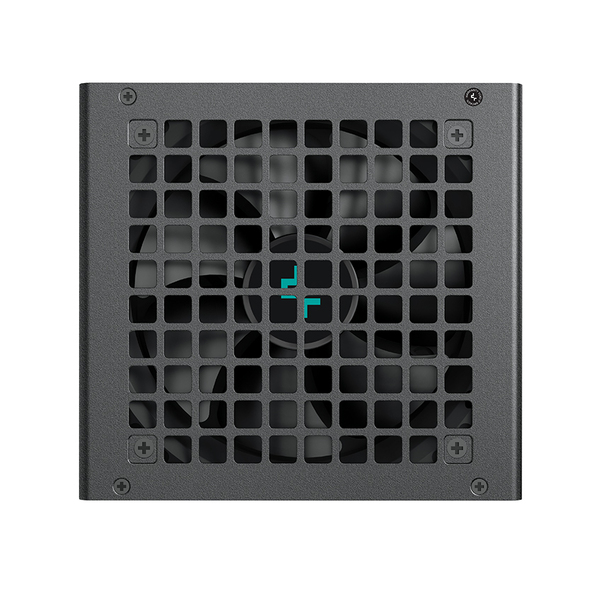

• Fan size: 120 mm
• Fan bearing: HYB / Hydro Bearing
• Hydro-bearing fan designed for stable long-term operation
• Operating temperature: 0–40 °C

Connectors

The PL800D is supplied with fixed, non-modular cabling:

• 1 × 20+4-pin ATX Main Power
• 2 × 4+4-pin CPU/EPS
• 3 × PCIe 6+2-pin
• 1 × 16-pin 12V-2×6
• 2 × SATA chains, each providing 4 × SATA + 1 × 4-pin Peripheral/Molex according to DeepCool’s connector listing

The native 16-pin 12V-2×6 connection makes the PL800D suitable for modern PCIe 5.x graphics cards without requiring an adapter for the corresponding connector. DeepCool specifies the cable as 16 AWG.

Protection Features

The PSU incorporates the following protection mechanisms:

• OPP — Over Power Protection
• OVP — Over Voltage Protection
• SCP — Short Circuit Protection
• OTP — Over Temperature Protection
• OCP — Over Current Protection
• UVP — Under Voltage Protection
• SIP — Surge & Inrush Protection
• NLO — No Load Operation

Physical Specifications

Additional Specifications

• MTBF: 100,000 hours
• ErP: ErP 2014
• Regulatory compliance: CE, FCC, CCC, RCM, EAC, CAN ICES-003(B)/NMB-003(B), TÜV-RH
• Environmental compliance: WEEE, China RoHS, Triman, P65
