GAMDIAS AURA GP550 550W

GAMDIAS AURA GP550 550W

GAMDIAS AURA GP550 550W is a non-modular ATX12V v2.4 power supply designed to deliver up to 550W of total power for desktop computer systems. It features a 30A +12V rail capable of delivering up to 360W, together with a 120mm hydraulic-bearing fan that automatically adjusts its speed according to operating conditions. The PSU provides a 24-pin motherboard connector, 4+4-pin CPU connector, two 6+2-pin PCIe connectors, five SATA connectors and two Molex connectors. It also incorporates OVP, UVP, OPP, OCP and SCP protection circuits for safer and more stable operation. With its compact 140 × 150 × 86 mm ATX format and fixed cable configuration, the GP550 is suited to standard desktop and mainstream PC builds.

General Specifications

GAMDIAS GP550 is a non-modular ATX12V v2.4 PSU with a 120mm hydraulic-bearing fan and automatic fan-speed optimization.

Power Specifications

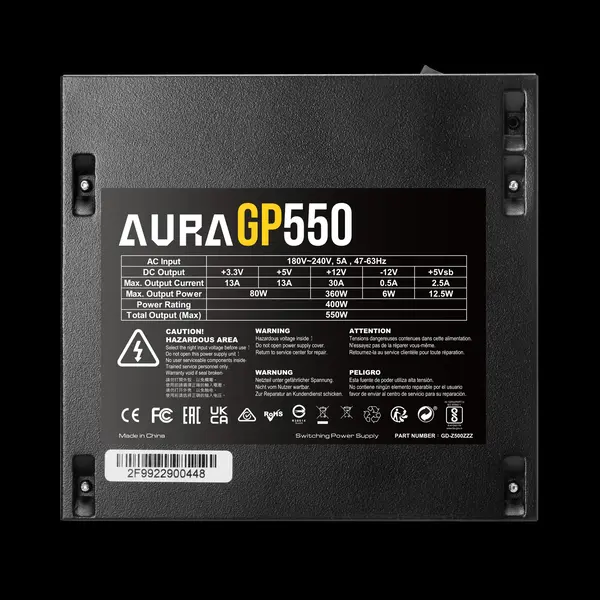

The important point for a gaming PC is the +12V rail, which is rated at 30A / 360W.

Input Specifications

• AC Input Voltage: 180–240V
• Maximum Input Current: 5A
• Input Frequency: 47–63Hz

Connectors

The GP550 provides the following fixed, non-modular cables:

• 1 × 24-pin ATX motherboard connector
• 1 × 4+4-pin CPU/EPS connector
• 2 × 6+2-pin PCIe connectors
• 5 × SATA power connectors
• 2 × 4-pin Molex connectors

The connector configuration is corroborated by multiple independent product listings carrying the same EAN 4712960136984.

Protection Features

The AURA GP550 includes:

• OVP — Over Voltage Protection
• UVP — Under Voltage Protection
• OPP — Over Power Protection
• OCP — Over Current Protection
• SCP — Short Circuit Protection

Cooling

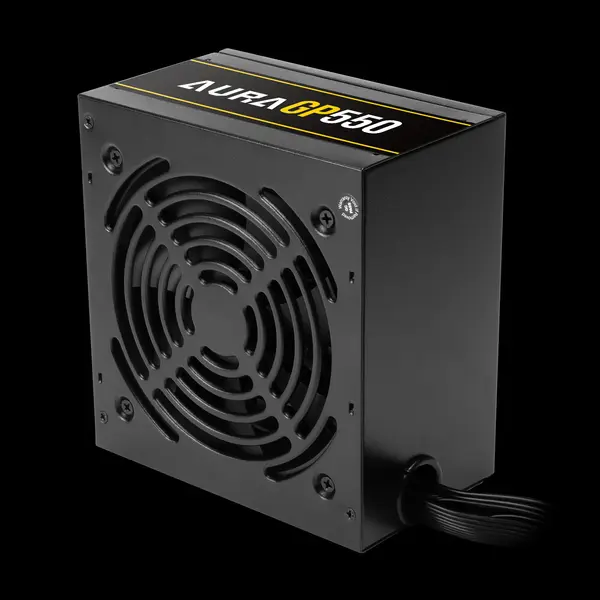

The PSU uses a 120mm hydraulic-bearing fan. Its smart fan control automatically adjusts fan speed according to the PSU’s operating load/temperature, helping balance cooling and noise during operation.

Physical Specifications

• Form Factor: ATX
• Dimensions: 140 × 150 × 86 mm
• Cable Design: Non-modular
• Cooling Fan: 120mm hydraulic bearing
• Color: Black
