MSI MAG CORELIQUID I360 BLACK

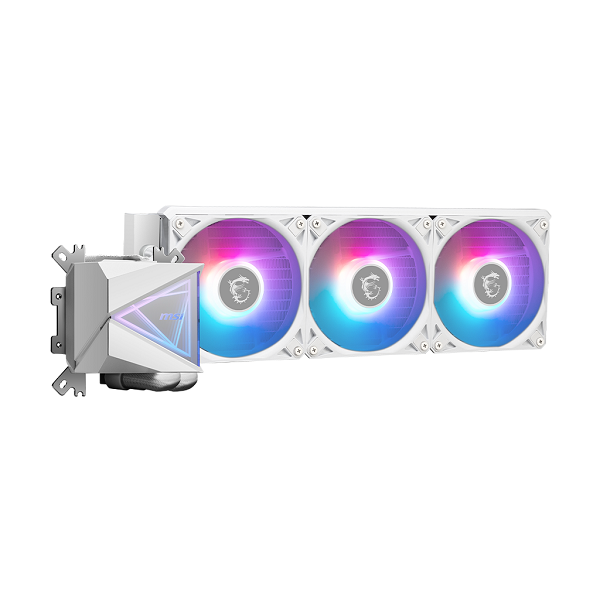

The MSI MAG CORELIQUID I360 is a 360 mm all-in-one liquid CPU cooler featuring a large copper cold plate, three 120 mm ARGB fans, a high-speed pump and a dual-sided infinity-mirror pump cover. Its design uses angular surfaces inspired by diamond cuts, with integrated ARGB Gen2 lighting on both the fans and CPU block. The cooler also uses an integrated universal mounting bracket designed to simplify installation across supported Intel and AMD platforms.

Product specifications

Cooling design

• 360 mm aluminum radiator with a 27 mm radiator thickness.
• Three 120 mm fans provide a combined airflow specification of up to 70.7 CFM per fan.
• Copper cold plate provides the CPU contact surface.
• The cold plate uses an enlarged contact area intended to improve coverage on modern multi-die CPUs, particularly AMD AM5 processors where the CPU hotspot can be offset from the center.
• MSI uses a split-flow radiator / dual-chamber pump design, separating the hot and cold coolant chambers to help maintain the temperature difference between them.
• The pump uses a three-phase motor designed to reduce motor resonance and vibration.

Fans

The cooler comes with three 120 × 120 × 25 mm fans. They use Loop Dynamic Bearings (LDB) and support PWM control. Each fan is rated at 70.7 CFM airflow, with a rated current of 0.2 A and maximum current of 0.3 A. Fan lighting is ARGB Gen2 and the specified fan lifespan is 30,000 hours at 40°C.

Pump / water block

The pump operates at 3400 RPM ±10%, with an average specified pump noise level of 20 dBA. It consumes 3.84 W under its rated specification, with a maximum power consumption of 6 W. The pump/block has ARGB Gen2 illumination and measures 69.1 × 74 × 62.45 mm.

Lighting and design

The MAG CORELIQUID I360 uses ARGB Gen2 lighting on both the fans and water block. The pump cover incorporates MSI’s dual-sided transparent infinity mirror, allowing the illuminated design to remain visible from different viewing angles. A cable-management cover is also provided around the pre-installed fan wiring for a cleaner appearance inside the case.

Installation and connectivity

The cooler uses an integrated universal mounting bracket supporting both Intel and AMD platforms. MSI lists compatibility with:

Intel

• LGA 1851
• LGA 1700
• LGA 1200
• LGA 1156
• LGA 1155
• LGA 1151
• LGA 1150

AMD

• AM5
• AM4

The pump connects through a 4-pin PWM header, while the ARGB system uses standard 5V 3-pin ARGB connections.

Main features

• • • 360 mm AIO liquid cooling
    • 3 × 120 mm ARGB Gen2 fans
    • 70.7 CFM fan airflow
    • 3400 RPM ±10% pump speed
    • Copper cold plate
    • Aluminum radiator
    • EPDM coolant tubing
    • Loop Dynamic Bearing (LDB) fans
    • Dual-sided infinity-mirror pump design
    • ARGB Gen2 lighting
    • PWM fan control
    • Integrated Intel/AMD mounting bracket
    • Cable-management cover for the pre-installed fans
    • Split-flow / dual-chamber cooling design
    • Intel LGA 1150–1851 compatibility
    • AMD AM4 / AM5 compatibility
