RTX 2060 SUPER 08GO GDDR6 MSI VENTUS 2X 3DP /1HDMI OCCASION

MSI GeForce RTX 2060 SUPER VENTUS OC 8GB GDDR6

The MSI GeForce RTX 2060 SUPER VENTUS OC is a graphics card based on NVIDIA’s GeForce RTX 2060 SUPER GPU, equipped with 8GB of GDDR6 memory on a 256-bit interface. It features a factory-overclocked 1665 MHz Boost Clock, 2176 CUDA cores and a dual-fan cooling system designed to efficiently dissipate heat from the GPU.

The card provides 3 × DisplayPort 1.4a and 1 × HDMI 2.0b for display connectivity, supports up to four displays simultaneously and offers a maximum digital resolution of 7680 × 4320. It also supports NVIDIA G-SYNC, Adaptive Vertical Sync and VR technologies.

Technical Specifications

Specifications are taken from MSI’s official specification page and product datasheet.

Cooling & Design

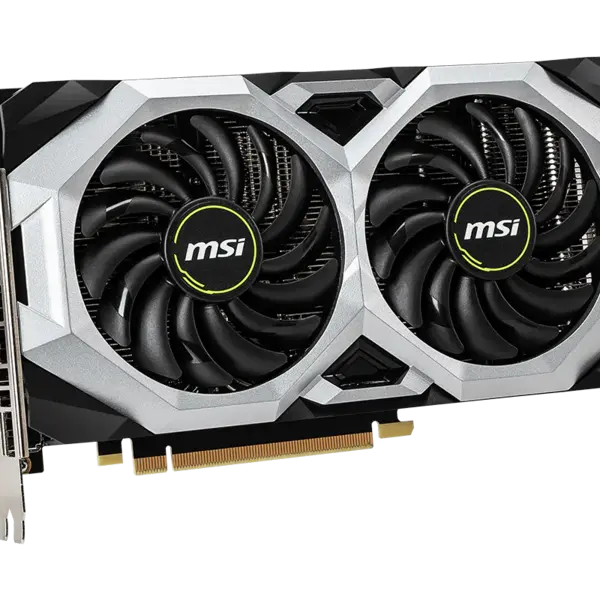

• Dual-fan thermal design covering a large portion of the heatsink for improved heat dissipation.
• MSI TORX FAN 2.0, combining two different fan-blade designs to balance airflow and acoustic performance.

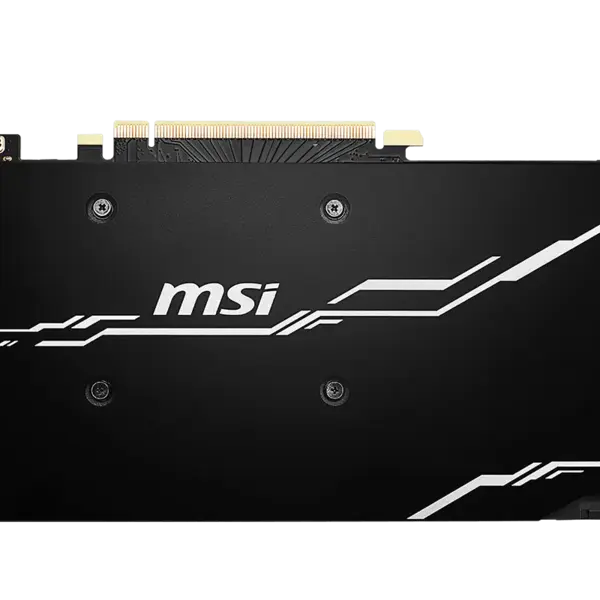

• Solid black backplate designed to reinforce the PCB and reduce bending while providing a clean finish.
• Factory OC configuration with a 1665 MHz Boost Clock.

Connectivity

The card is equipped with:

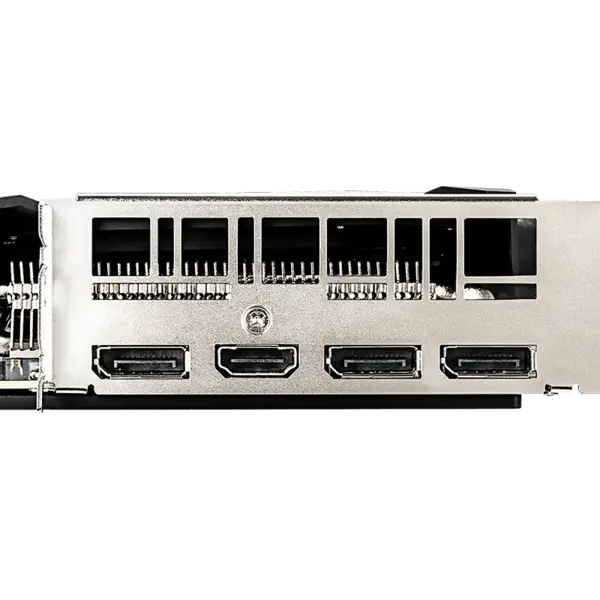

• 3 × DisplayPort 1.4a
• 1 × HDMI 2.0b
• Support for up to 4 monitors simultaneously
• HDMI support for 4K at 60 Hz
• Maximum digital resolution of 7680 × 4320.

Power Requirements

The RTX 2060 SUPER VENTUS OC has a rated power consumption of 175 W and requires one 8-pin PCIe power connector. MSI recommends a 550 W power supply for the system.

Software & Technologies

The card supports MSI Afterburner for GPU overclocking, monitoring and control. It also supports NVIDIA G-SYNC, Adaptive Vertical Sync and VR Ready functionality.
